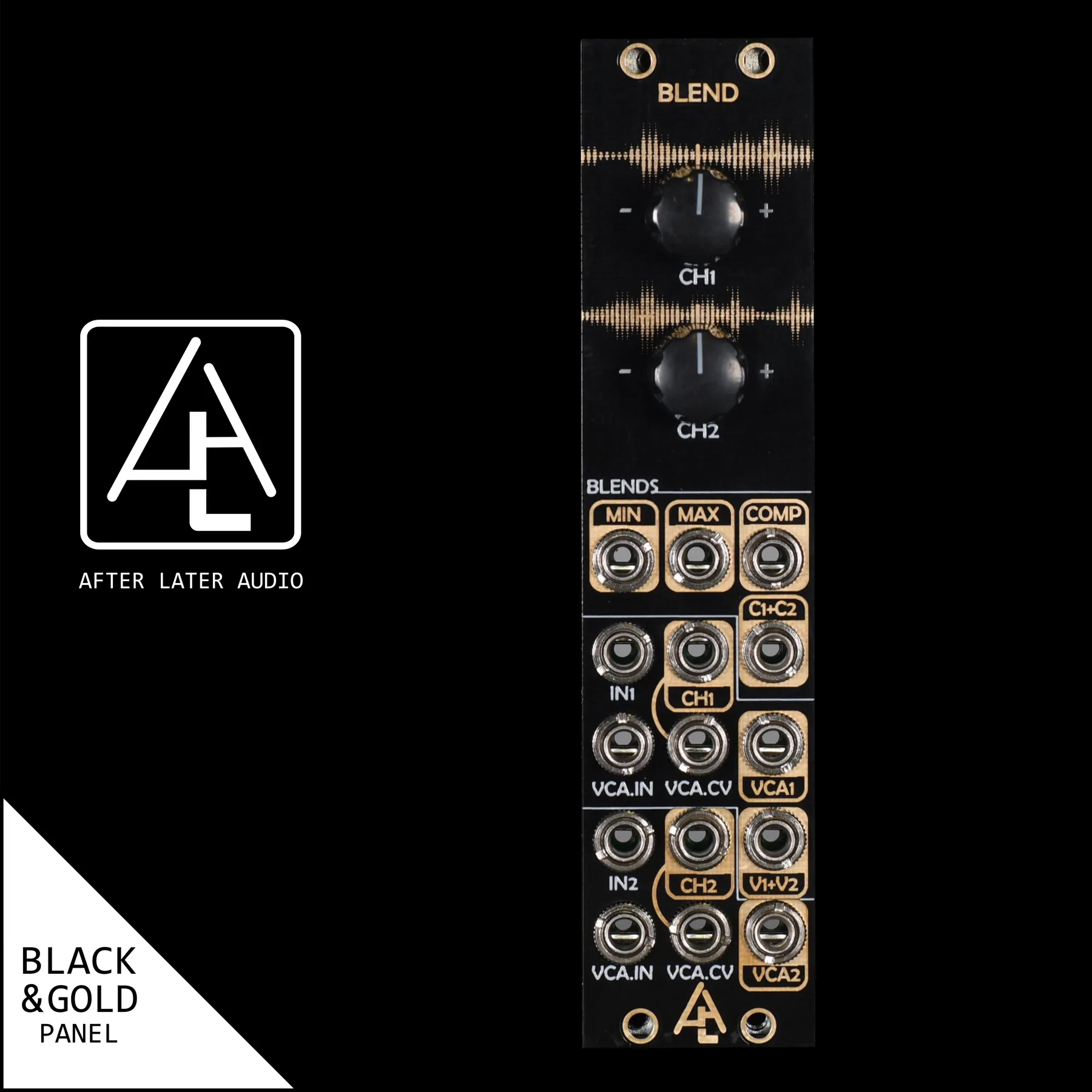

BLEND

A CV/Audio Mixer with Dual VCA

CV sections
Blend has two CV sections each with:

• Input (normalled to a +5V signal)
• Attenuverter
• Output

CV Mixer section
Blend takes the outputs of the two CV sections and offers the following:

• Min output
• Max output
• Comparator output (level brought down to 4.5V)
• Sum output
• The min and max sections do not attempt to be precision min/max measurements. They will be within two diode drops of the actual min or max voltage.

VCA Sections
There are two VCA sections that are also have a mix output. The CV input for each VCA is normalled to the output of a CV section. The VCA circuits are LM13700 based so they will slightly color the sound. The response curve is nearly linear but offers a slight exponential curve.
