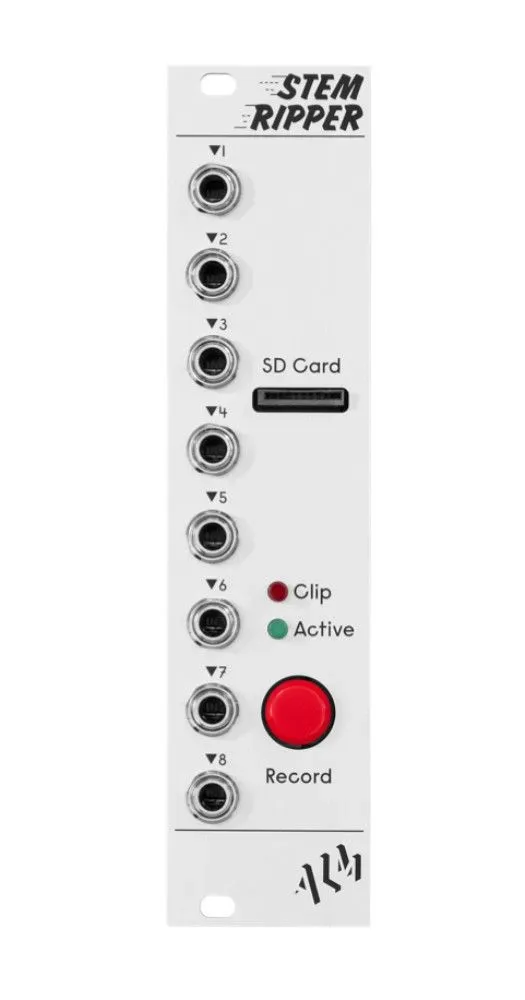

Stem Ripper

The Stem Ripper is a compact 8 channel audio recorder designed for immediate full patch recording without the need for external hardware. Capture all audio stems of a patch with ease.

Patch stems are recorded directly to a micro SD card which can then be easily transferred to a computer to mix, edit or archive patches. Each input is recorded as an individual track in a 16bit 44.1kHz multichannel date stamped WAV file. Record time is limited only by SD card size. Two additional tracks within the output WAV contain a configurable stereo mix down of the inputs.

The module has large 20Vpp per input headroom with LED clip indication if exceeded.

An optional 2HP ‘Thru’ output expander duplicates the 8 inputs to a row of unbuffered outputs, eliminating the potential need for stacking patch cables at the expense of more case real estate.

A suitable 64Gb SD card is included with the unit.

• Simple quick full patch audio recording.
• 8 independent 16 bit 44.1kHz audio tracks.
• Direct recording to a micro SD card with recording time limited only by SD card size.
• Multichannel WAV file output for easy drag and drop functionality.
• Additional fixed stereo mix tracks with configurable levels.
• Accurate automatic date stamping of recordings with battery backed clock.
• 20 Vpp headroom per input with LEDs for clip indication and recording status.
• Optional ’Thru’ expander that allows signal to pass unbuffered through the Stem Ripper.
• Up to 1Tb sized SD cards supported.
• Skiff friendly with reverse power protection.
• 2 Year Warranty.
• Made in England.

• Supply: +12V 150mA / -12V 20mA
• Size: 6HP
• Depth: 32mm
• Headroom: 20Vpp per channel (approx)
• Noise Floor: -80 dB (approx)
