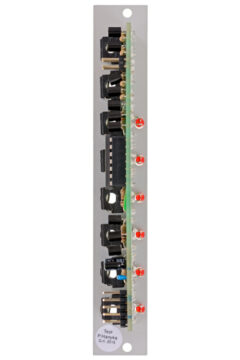

A-160-1

The A-160-1 is a frequency divider for clock, trigger and gate signals, designed to be a source of lower frequencies, particularly for rhythmical uses. The available dividers are exclusively even numbers. Additionaly there is a reset input which sets all outputs to “zero”.

The clock divider analyses an incoming clock and divides it by 2, 4, 8, 16, 32 and 64. Each divisor has a separate gate output and their activities are displayed with individual LEDs.
A trigger impulse at the reset input zeroes the entire module.
