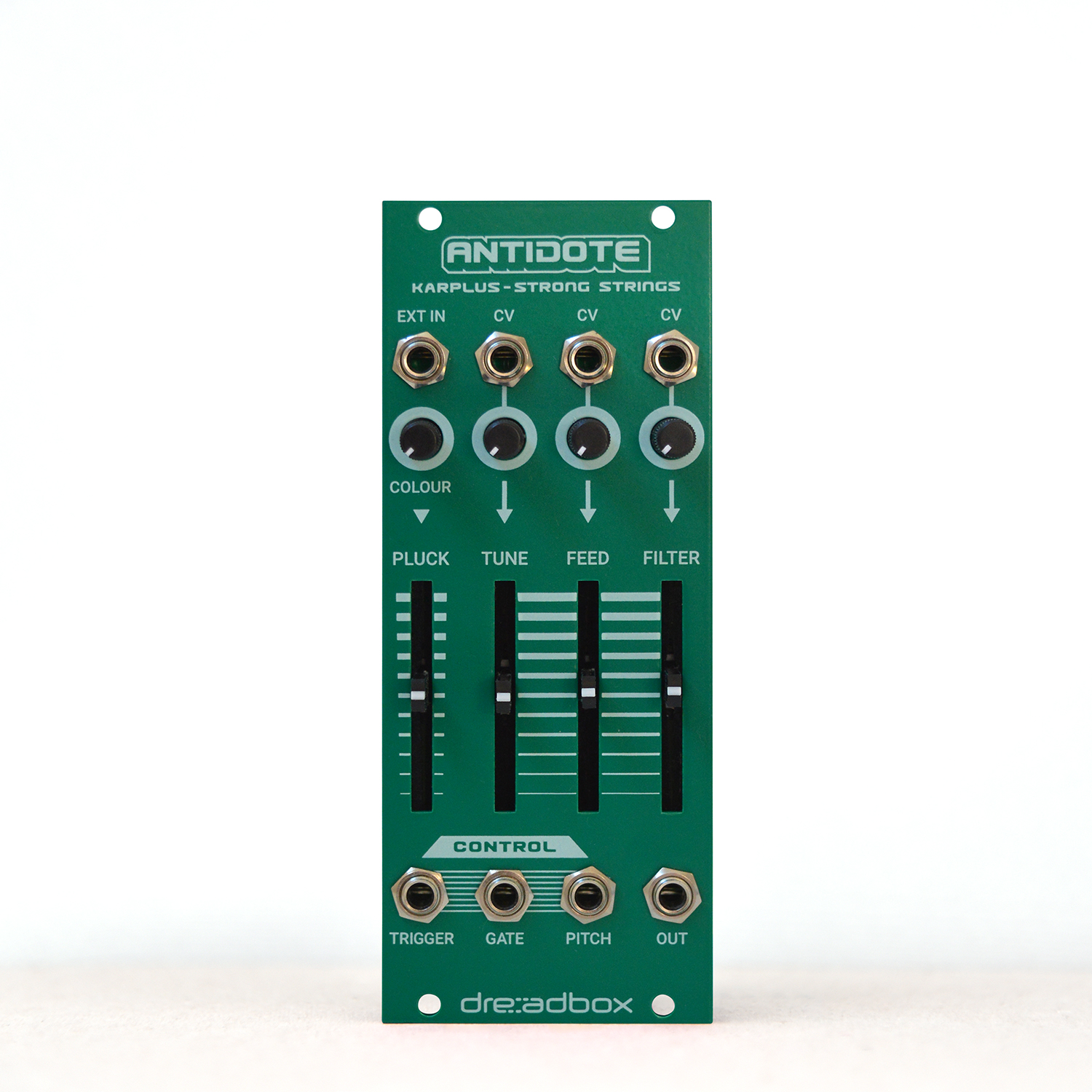

- Full Karplus-Strong Synthesis Voice
- Analog circuit based on a 512stages BBD chip
- On board Noise Generator with a variable decay (pluck)
- Two Analog Low Pass Filters (one in the input and one in the output)
- Output Filter can be used as a Low Pass Gate
- Precision tracking over 5 octaves (from C0 up to B4)
- Can process external audio signals so that can be used as:
Resonator
Flanger (requires external LFO)
Chorus (requires external LFO) - Frequency/delay time range:
C0 @16,35hZ (61ms) up to
B4 @493,9hZ (2,1ms) - BBD quirks:
C0 to F#0 will produce a hight pitched noise
Depending on the external input and the LFO source, clicks and peaks might be audible - Current consumption: 92mA@+12v , 43mA@ -12v
- 35mm depth
