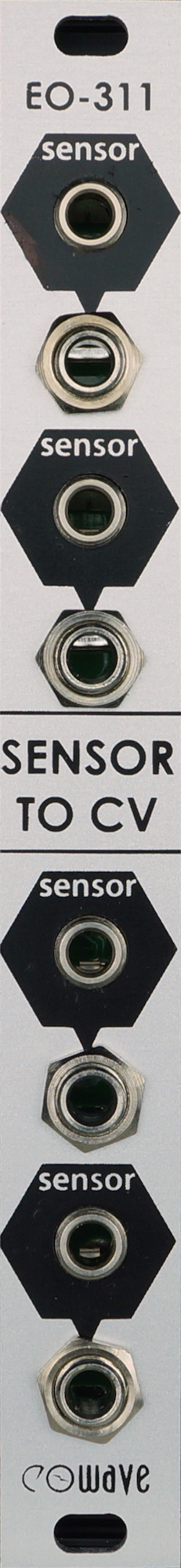

EO-311 SENSOR TO CV

With the module EO-311 SENSOR TO CV, we wanted to share eowave sensor systems that we have been designing for more than 10 years with the world of modular systems. This new module enables to plug 4 of any eowave sensor to control parameters of a modular system. Sensor type will be chosen depending on which parameter you want to control. Among sensors, we propose IR distance sensors, pressure sensors, position sensors, accelerometers, tactile sensors, tilts, capacitive pads…The EO-311 SENSOR TO CV enable to connect 0-5V sensors to outputs of parameters of your modular systems. It ensures the powering of the sensor and an adequate buffering of the sensor signal into CV.

The module EO-310 SENSOR SIGNAL PROCESSOR can be added to add more processing paramaters of the signal from the sensors.

– 4 x 0-5V sensors mini-jack 3,5” inputs to control your modular with sensors (see Eowave sensors)
– 4 x outputs mini jack 3,5”

– Width : 3HP

http://www.eowave.com/EO-311.php
