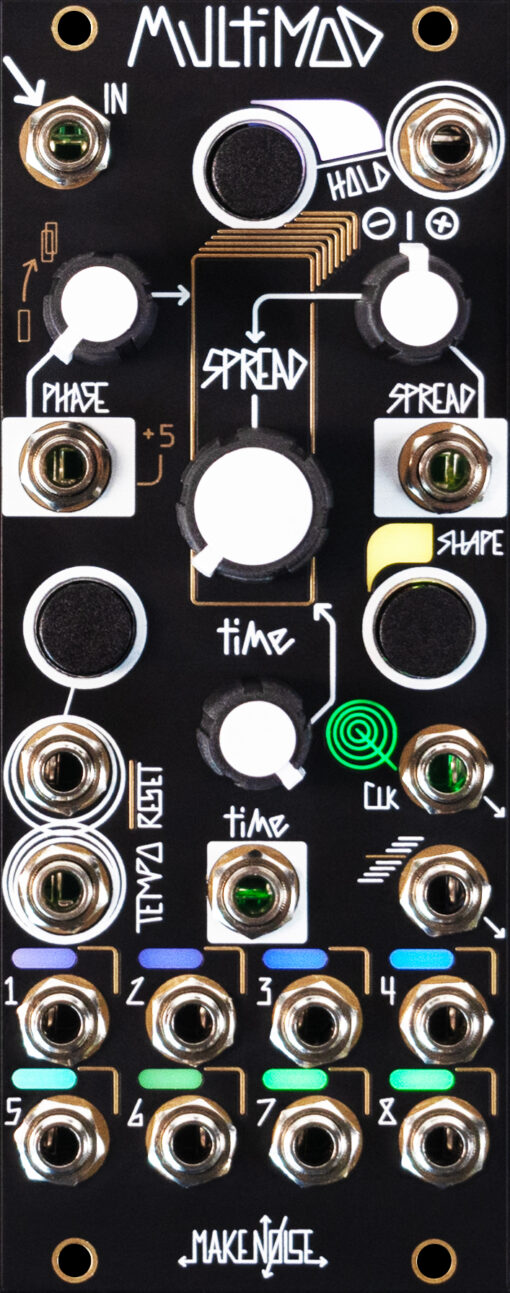

MultiMod

MultiMod represents a new approach to complex modulations: it takes a single control signal and copies it 8 times, additionally modifying those copies by weighted adjustment of their relative phase and speed. The result is a flock of related modulation signals, all derived from the same single input.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for vari-speeding the copies by different amounts, with each getting progressively faster or slower than the original signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built on a brand new DSP hardware developed for the New Universal Synthesizer System. It offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analog eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.

• Generate vari-speeded, phase modulated copies of any modulation signal.
• Dramatically control 8 CVs with just 3 fully modulatable parameters.
• Multiple unique read shapes for varying traversal through copied signals
• Tempo/Reset inputs and Clock output for temporal system integration
• Hold feature for looping captured signals
• Ultra-Wide 20V p-p I/O ranges approach analog maximums of the Eurorack system
• Full TechniColor, Maximum Blinkenlights
• Calibrated to accurately pass critical control signals such as quantized pitch CV
• Internally generated signals for “LFO mode” when nothing is patched to the Signal Input.

• Width: 10hp
• Max Depth
  (incl. power cable): 39mm
• Power:
  195mA @+12V
  10mA @-12V
