XXM

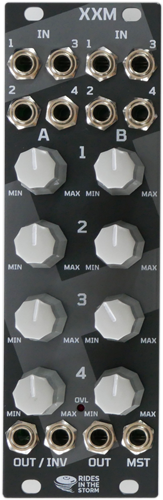

XXM – 2×4 and 1×8 Mixer(AC/DC)

For audio signals and control voltages.

Mixer A and Mixer B with 4 inputs each and level control knob per channel.

Mixer A is DC coupled and with positive and inverted outputs

Mixer B switchable between AC/DC coupling via jumper

Common master output

Power consumption: 20mA (+12V) / 20mA (-12V)

Width: 8 HP

Depth: 25mm

Power consumption: +/- 20mA
