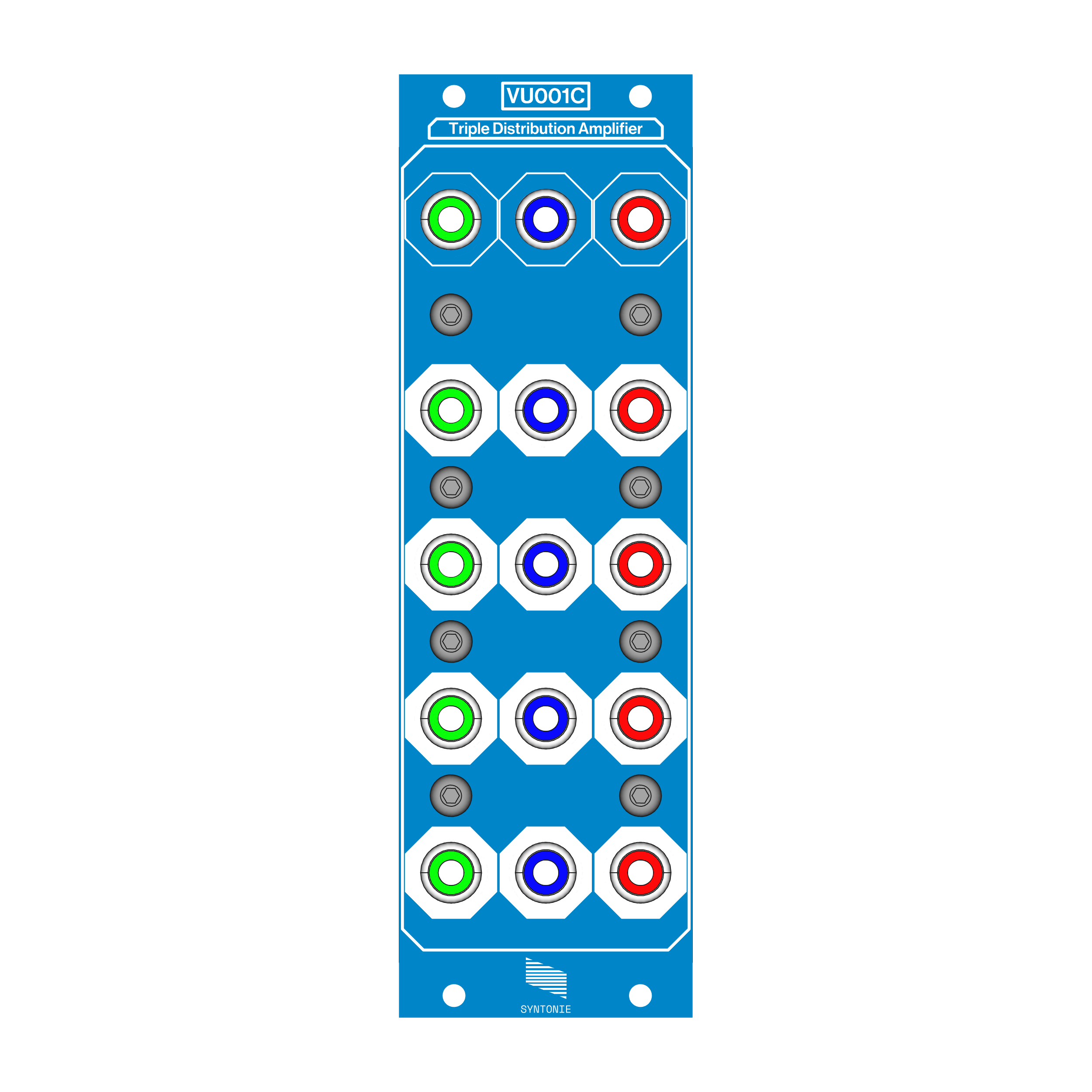

VU001C features 3 video distribution amplifier channels, aimed towards distributing Component video to multiple monitors/capture devices, but can also be used to distribute 3 independents Composite or sync signals.
The internal sync signal is distributed to the 3×4 outputs within the module and passed to multiple monitors/recording devices or distributed across multiple modular systems. Since the rear RCA input is now buffered, there is no longer a sync termination jumper, a single jumper is used to either distribute the signal at the front RCA input to the 3×4 front RCA outputs and the rear RCA output, or distribute the signal at the rear RCA input to the 3×4 front RCA outputs and the rear RCA output. Internal and external signal distribution can be set with jumpers.
Inputs:
– 75 ohm, RCA
Outputs:
– 75 ohm, RCA
Specs:
– 8HP
– 55mA +12V
– 15mA -12V
– 0mA +5V
– 20mm deep
