USB 2.0 class-compliant audio interface

508,00  TTC

Availability: In Stock
- +
Comparer Comparer
SKU: EXS004 Categories: , , Brand:

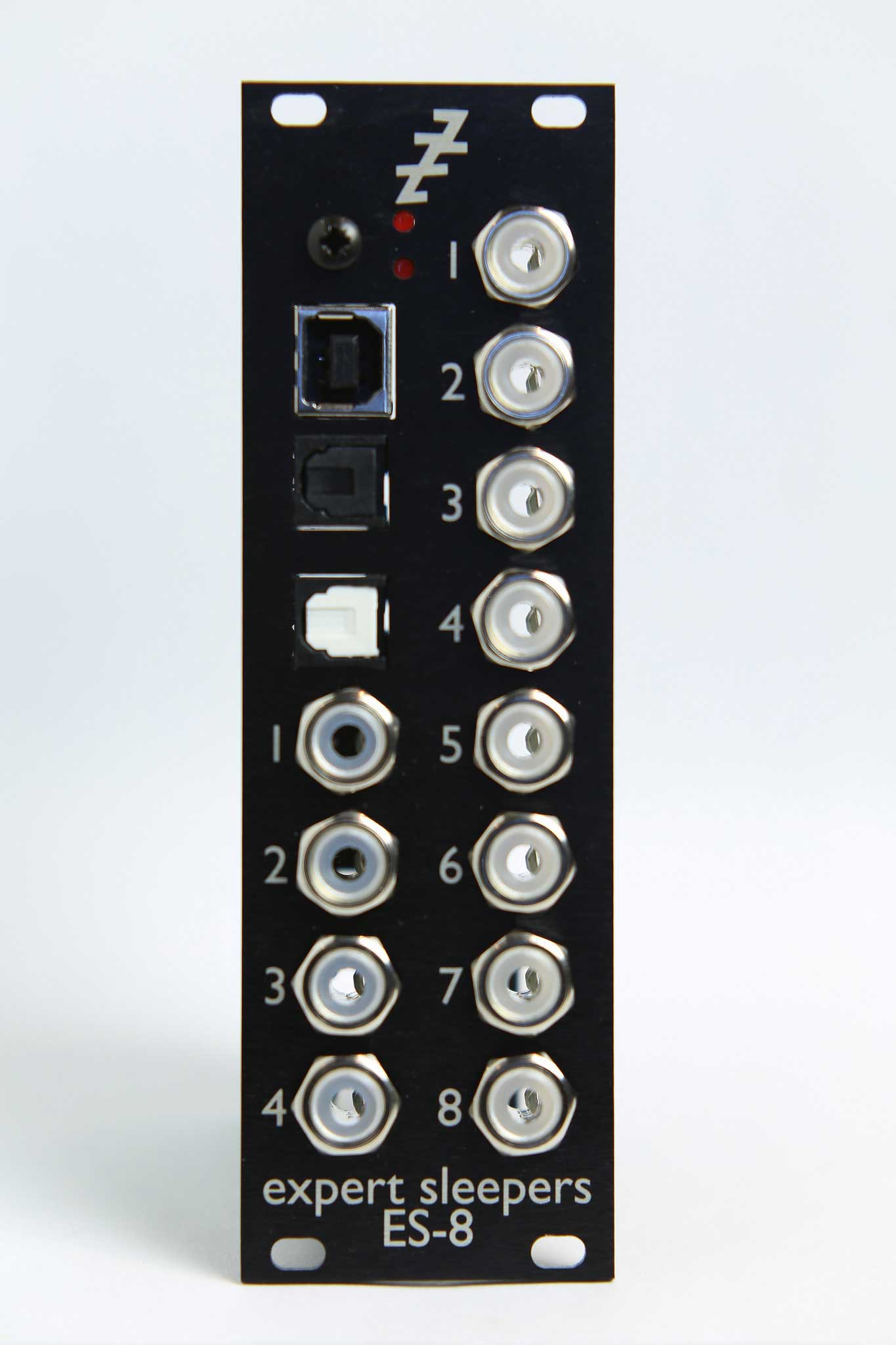

The ES-8 is a USB 2.0 class-compliant audio interface with DC-coupled inputs and outputs that can be used for both CVs and audio. It is directly compatible with all popular computer-based CV generation software as well as audio and CV processing iOS apps. The module also has ADAT inputs & outputs which could be used to expand the output count or to connect a traditional audio interface.

The ES-8 is compatible with software like Silent Way, Max/MSP, Reaktor, CV Toolkit, zMors etc. and can also communicate with iOS applications. Four inputs and eight outputs (3.5mm sockets) are available. being DC-coupled they are compatible both with audio and CVs. In total the ES-8 offers twelfe input and sixteen output channels. An expander header located on the PCB allows for connection an ES-5, to which in turn you can connect gate, CV and MIDI expanders from the ESX series, creating a very powerful system. The optival Toslink sockets are ADAT connectors, one input and one output. Using them you can conenct an ES-3 and/or an ES-6 in order to expand the module by more outputs. Otherwise it would be possible to use the ADAT connectors with an audio interface, adding 1/4″ line inputs, microphone pre-amplifiers etc. The module works internally with a high quality clock but it can be synchronized optionally to the ADAT input signal. The sampling rate is selectable between 44.1kHz, 48kHz, 88.2kHz or 96 kHz.
Driver support: class-compliant USB 2.0 (no Windows support initially, please check latest firmware version before purchasing)
USB input (Type B) ADAT input, ADAT input (optical Toslink connectors) 4 analog inputs, 8 analogue outputs (3.5mm)
3U, 8HP, 50mm deep current draw (at 96kHz sampling rate): 196mA at +12V and 52mA at -12V
