Répression

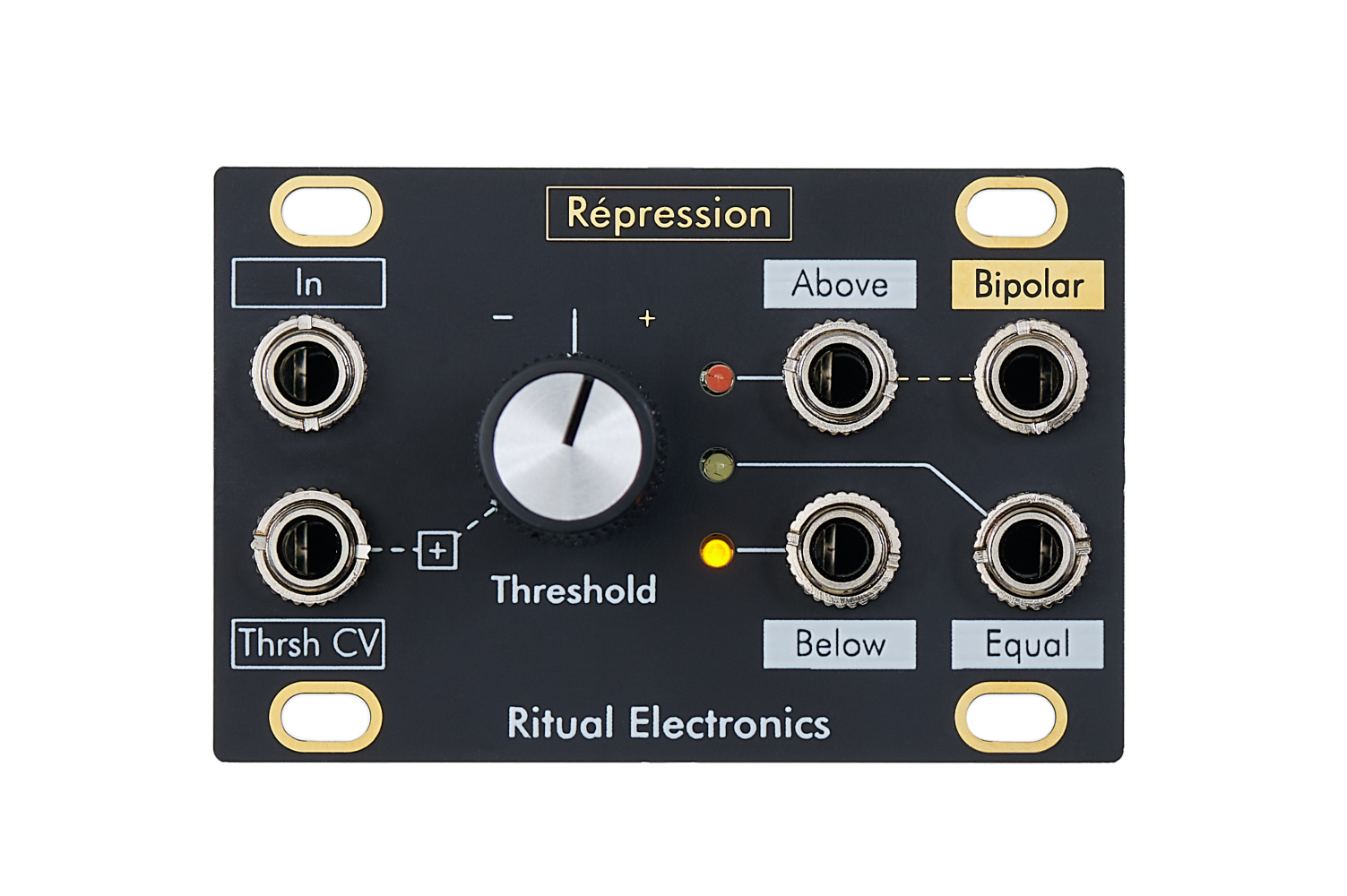

Répression from Ritual Electronics is a multifunctional CV controllable comparator.

The module analyzes an input signal and compares it with the value of the Threshold control, to which the CV Threshold (CV Thrsh) is added, before passing it on to the Comparator’s terminal. Based on the operation result four logic signals are generated. Above=high if the input is above the threshold value. Below=high if the input is below the threshold. Equal generates a trigger signal when input and threshold signals are equal, while Bipolar is a +/-5V variation (10Vpp) of the Above output.

Features:

• CV controlled comparator
• Generates 4 logic signals
• Outputs for Above (input above threshold), Below (input below threshold), Equal (generates trigger when input and threshold signal are equal), Bipolar (+/-5V variant of Above output)
