Vector Wave DIY KIT

PLEASE NOTE THE KIT IS ONLY SUITABLE FOR EXPERIENCED BUILDERS.

WARNING:
To build the kit you MUST have the following:

-Accurate and stable 5.00V reference source to calibrate the module
-Flux pen, or liquid flux
-Two mini clamps
-Clean high quality 2/3mm tip solder iron [ chisel type recommended ]

The PCB is double sided, and any mistakes soldering parts such as the LED display are practically impossible to fix later

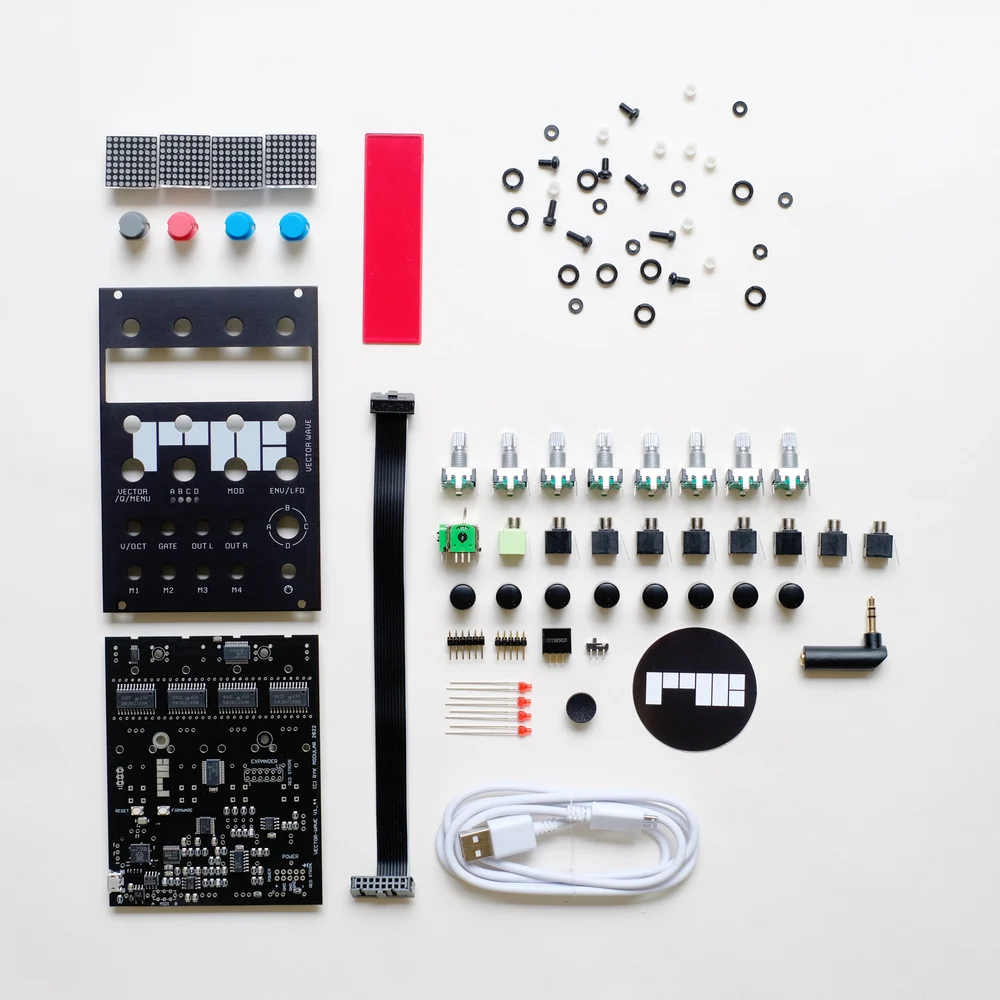

This is a complete kit for Eurorack, Including all parts:

1xPCB (All SMD parts come already pre-soldered), a high quality screenprinted 2mm aluminium panel, encoders, knobs, switches, LED displays, joystick, jack sockets, and all sundry components.

FEATURES

16 oscillators, divided into 4 banks, oscillators can freely configured into series or parallel combinations for complex FM or additive synthesis

A cute Vector Joystick for morphing between oscillator banks, for cool performance timbre sweeps and sonic movement
Vectors can be recorded from the joystick and replayed from trigger sources, or animated from external or internal modulation sources

Super cool retro Big-Pixel screen, ideal for nostalgia freaks or the visually impaired

Wave Warping brings grit and aggression to the FM synthesis with oscillators continuously variable between Sine,Tri-ish Saw, Pulse waveforms

Wave Folding for subtle to extreme sonic bending

Two Envelope generators [ per voice in polyphonic modes ], and two LFOs with all controls assignable as modulation destinations

Intuitive Modulation Slot patching from external and internal sources to be routed to any parameter within the Vector Wave

30 User Voice storage spaces for storing your synth masterpieces to internal memory, enabling you to impress your friends at a later date

Thee modes of oscillator bank allocation Monophonic Vector, and Polyphonic Voice, and Multitimbral Polyphonic

MIDI input for a spaghetti-free Polyphonic setup, velocity, aftertouch and MIDI CCs avail- able as modulation sources

Slim but handsome Expander Module also available that adds 3 more V/oct and Gate inputs, for maximum mutli-voice multitimbral melodious mayhem !
